From Custom Session State to LangGraph: A Fable Migration Story

The Problem

For months, Fable — our children's story-writing AI agent — ran on custom state in server memory. It worked in development. But production told a different story.

Every deploy lost active story sessions.

Users couldn't resume half-finished tales.

Debugging meant grepping through console logs.

No streaming = blank screens while waiting.

We needed a rewrite.

The Architecture: Before vs After

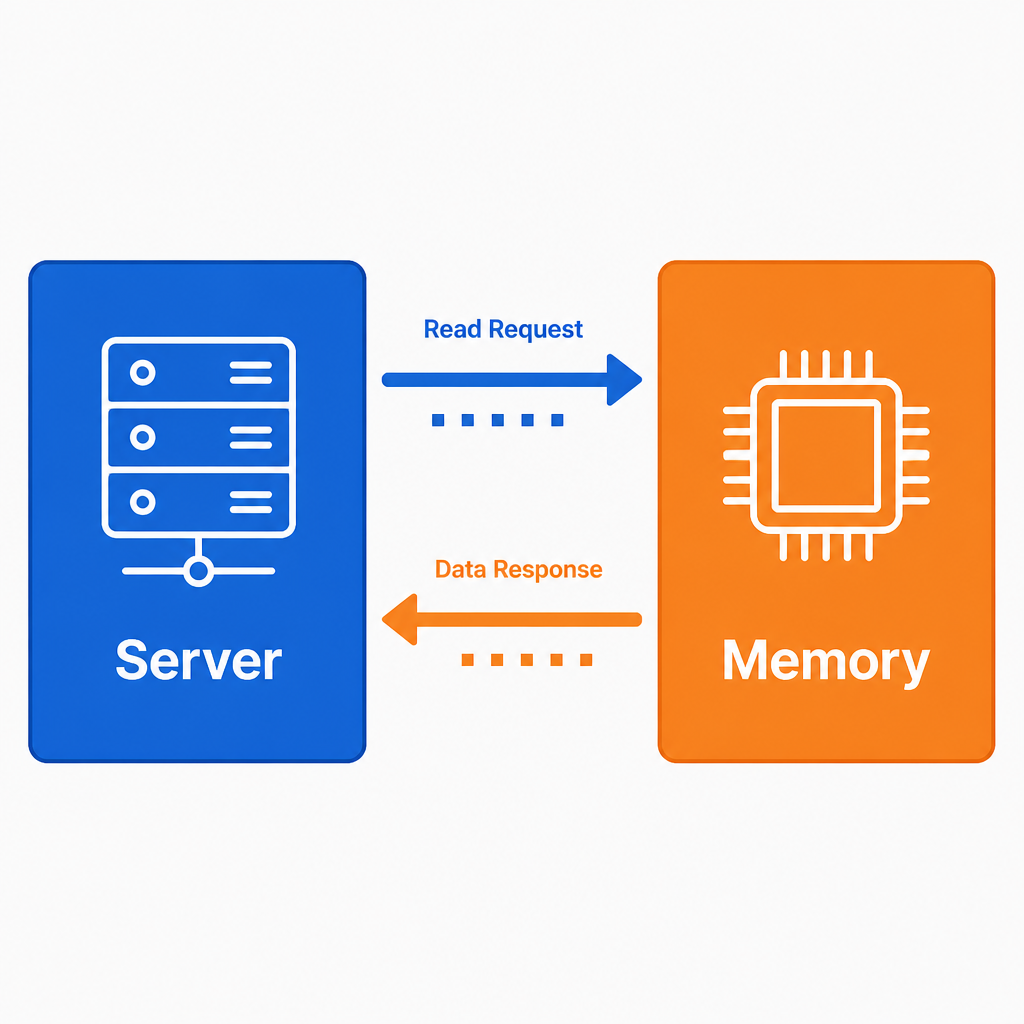

Before — In-Memory Sessions

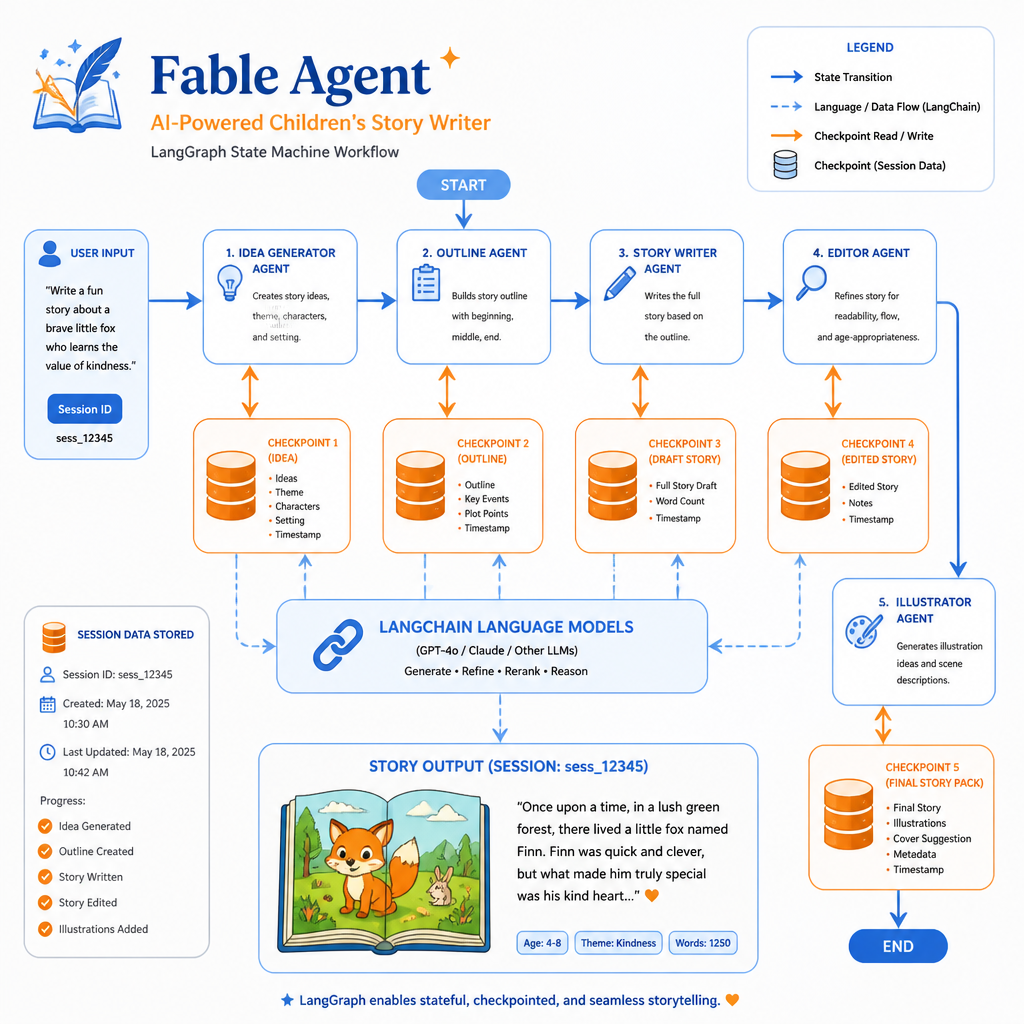

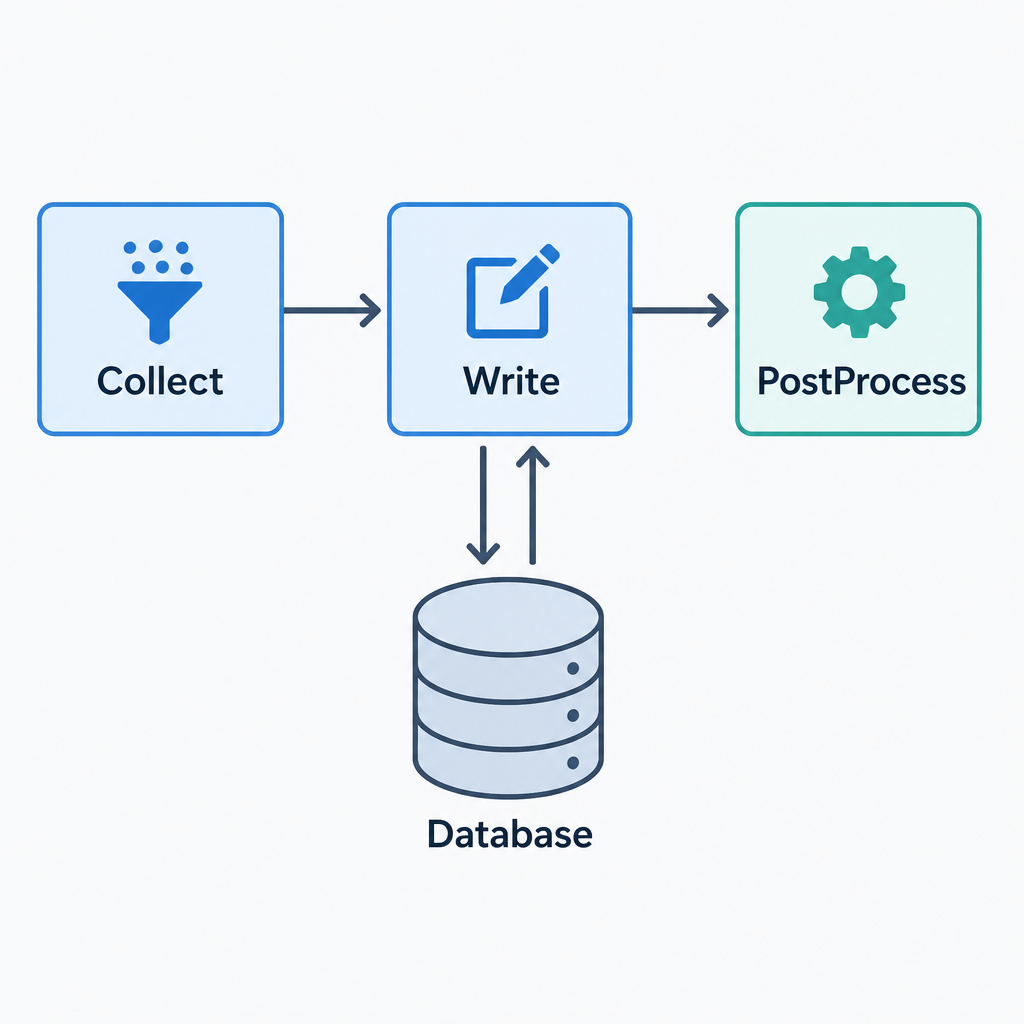

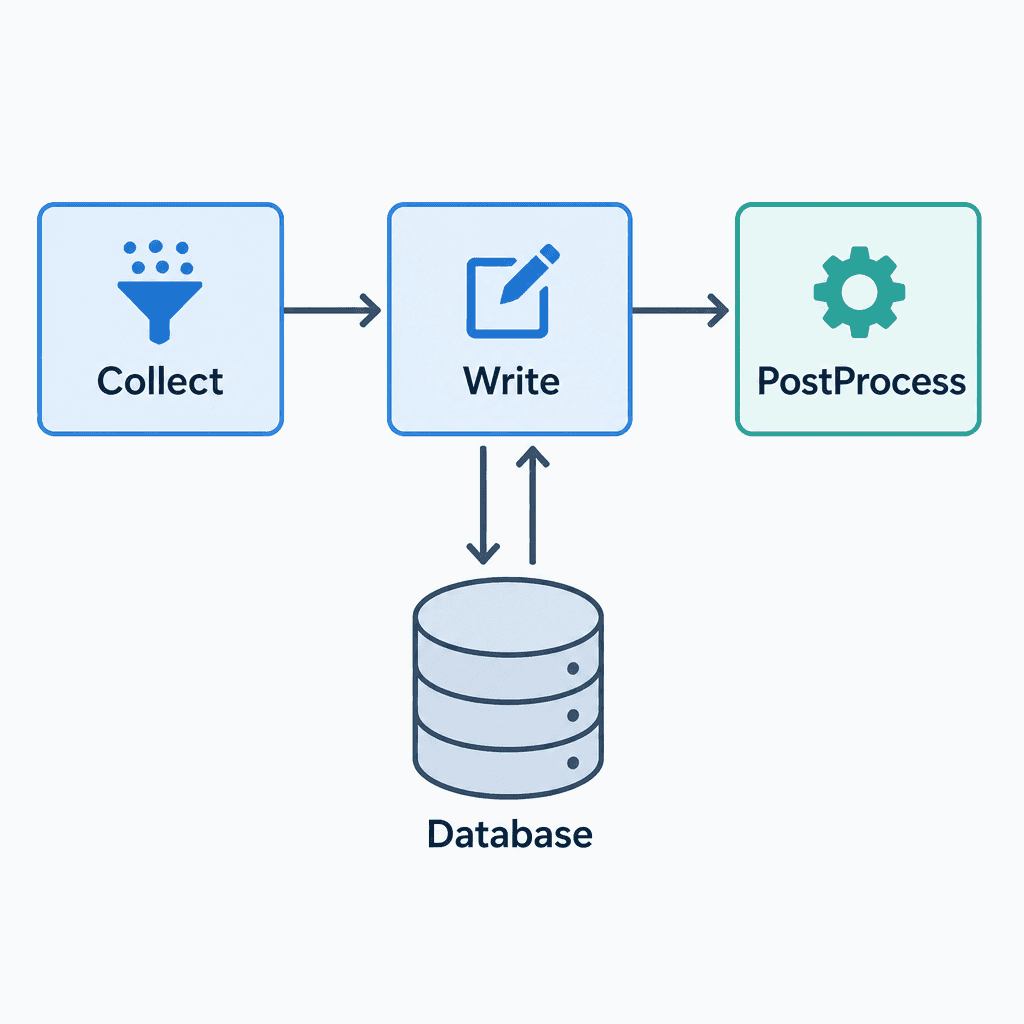

The new flow uses LangGraph's StateGraph with multiple nodes. Each node transforms state, and after every turn, the state is checkpointed to Firestore. If the server restarts, we just fetch the latest checkpoint and resume.

Now we have:

The Implementation

1. State = Graph Annotation

Instead of a custom SessionState type, we defined FableState as a LangGraph annotation. Think of it as the "memory" that flows through the graph:

FableState = {
  sessionId, userId,
  phase, age, character, theme, setting,
  fullStorySoFar, sentencesWritten, sentenceLimit, maxSentences,
  uniquenessScore, isUnique,
  lastResponse, audioUrl, postProcessResult
}

2. Nodes = State Transformers

Each node is an async function that transforms state:

collectAge(userInput) → sets age, asks next question
collectCharacter(userInput) → sets character
generateStory(userInput) → adds to story, increments sentence count
checkUniqueness(fullStory) → queries Firestore, sets uniquenessScore

The graph routes between nodes based on the phase field.

3. Checkpoints = Firestore Documents

Turn complete? Save a document:

checkpoints/
├── thread_id: "story-123"
├── checkpoint: { ... entire state ... }
└── created_at: timestamp

Resume? Fetch the checkpoint and continue from where you left off.

4. RAG = Unique Stories

Every story turn generates an embedding and queries Firestore:

"dragon found magic sword"
    ↓ Gemini embedding
    ↓ Firestore findNearest
    ↓ Compare against 1000+ stories
    ↓ Too similar? Prompt to change

5. Parallel Post-Processing

Story done? Five tasks run simultaneously — 2 seconds instead of 10:

Polish | Caption | Summary | ImagePrompt | Save
  2s       2s        2s         2s          2s
  ────────────────────────Parallel──────────────────────
                    = 2 seconds total

The Challenges

Import Path Hell

Node files in src/agent/nodes/ were importing ../utils/ when they should use ../../utils/.

Fix: One sed command:

sed -i '' 's|from "../utils/|from "../../utils/|g' *.ts

Missing Export

LENGTH_CONFIG wasn't exported from prompts.ts.

Fix: Added the missing export.

Session Manager Remnants

Old server.ts still referenced deleted session_manager.ts.

Fix: Updated imports and endpoints to use FirestoreSaver.

Bun's @google-cloud/firestore Bug

Known Bun issue (#4746): bundling @google-cloud/firestore fails with export errors.

Fix: Use runtime require:

const Firestore = require("@google-cloud/firestore").Firestore;

Test Runner Issues

Bun's cache corrupted — caused symlink bugs.

Fix: Clear cache and retry:

rm -rf node_modules/.bun
bun test

Key Wins

Before → After

What Changed for Users

Before:

After:

Lessons Learned

1. Custom state seems easy until it isn't

Custom session state looks simple. Then you need persistence, streaming, checkpoints, debugging — and you're rewriting anyway.

2. Agents need visible state

If you can't see your agent's state, you can't debug it.

3. Persistence is non-negotiable

Users expect stories to survive refreshes, deploys, crashes.

4. Streaming is a feature

Users want to see progress, not blank screens.

5. Parallel wins

If tasks don't depend on each other, run them simultaneously.

The Results

The migration took 3 weeks. The build works, tests pass, and Fable is now production-ready.

38 files changed, 1417 insertions(+), 1385 deletions(-)

_Check more open source repos at: github.com/mnkrana/_
